0.75KW To 3.7KW VFD High-Frequency Converter 3 Phase Variable Frequency Drive
Quick Details:
Rated Power: 0.75kw-3.7kw
Rated Voltage: 3 phase 380v
Rated Frequency: 50hz/60hz
Product Size: 80mm*185.5mm*167.5mm
Installation Size: 56mm*174.5mm
Weight: 1.5kg
Input: 50/60hz
Output:0-300hz
Certificate: CE
Application: Printing industry and packing industry
Control Mode; V/F Control
Description:
A thin and small volume of VFD
1) PCB and PCBA based on 15 years of experience, new design.Using 4 layer precision PCB board, using new generation IGBT module technology, high junction temperature, high power density. Use IC integrated electronic components as much as possible, and use the SMC patch process. Minimize the use of plug-in electronic materials.
2) At the same time, the independent air duct is designed as the core of the tooling structure to improve the product's stability and life. The tooling structure is simple and easy to disassemble and install, thus reducing the quality risk in the process of production and assembly.
3) Based on the development strength of the above core, the volume of the converter can be greatly reduced. The reduction of the volume is conducive to the reasonable distribution of the space of the electric box, making the layout of the whole electric box more relaxed and relaxed, to avoid crowding. In a sense, it can also reduce the overall temperature rise of the electrical cabinet, which has a positive effect on the service life of the equipment.
Operation Panel
| Mark | Key Name | Function |
| MENU | Program/Exit key | 1. Enter or exit the programming state 2. Modify the data and abandon the storage 3. Switch fault display to stop/running parameter with the SHIFT key, press MENU to switch back to fault display state |
| ENT | Identify key | 1. Edit function code parameters 2. Data storage confirmation 3. View the single group of parameters circularly |
| M | Multi-function key | Switch selection according to function |
| SHIFT | The shift key | 1. Move the editing bit of function parameters 2. Move the data editing bit 3. Switch the display parameters of the operation panel under shutdown/running state |
| Increase Decrease | Add keys clockwise | In shutdown/operation state, the frequency value increases |
| Increase Decrease | Countercloc kwise decrease key | The frequency value decreases under shutdown/running state |
| RUN | Run key | 1. Long press the 3S operation panel to start the driver in the given mode 2. Long press 3S to set parameters, and then start the driver for parameters self-learning |
| STOP/AST | Stop/reset key | 1. Press the button for 1S to report the fault and reset the fault after abnormal shutdown 2. Press for 1S to control the drive shutdown under the given mode of operation panel operation command |

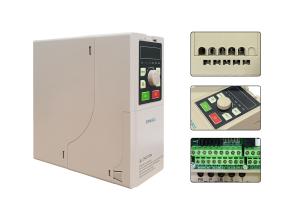

Details Image:
Application
Widely used in leather machines, paper printing, petroleum industry, wire and cable, textile industry, plastic machine, etc.
